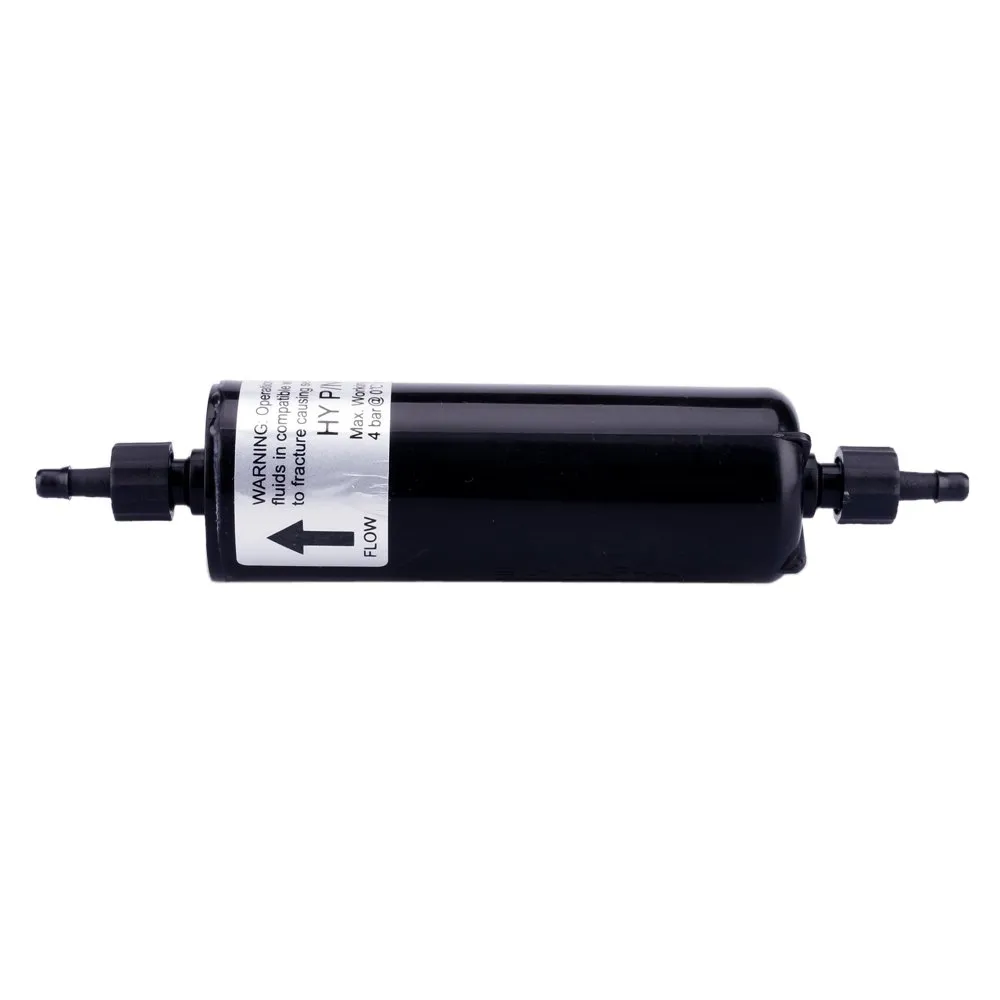

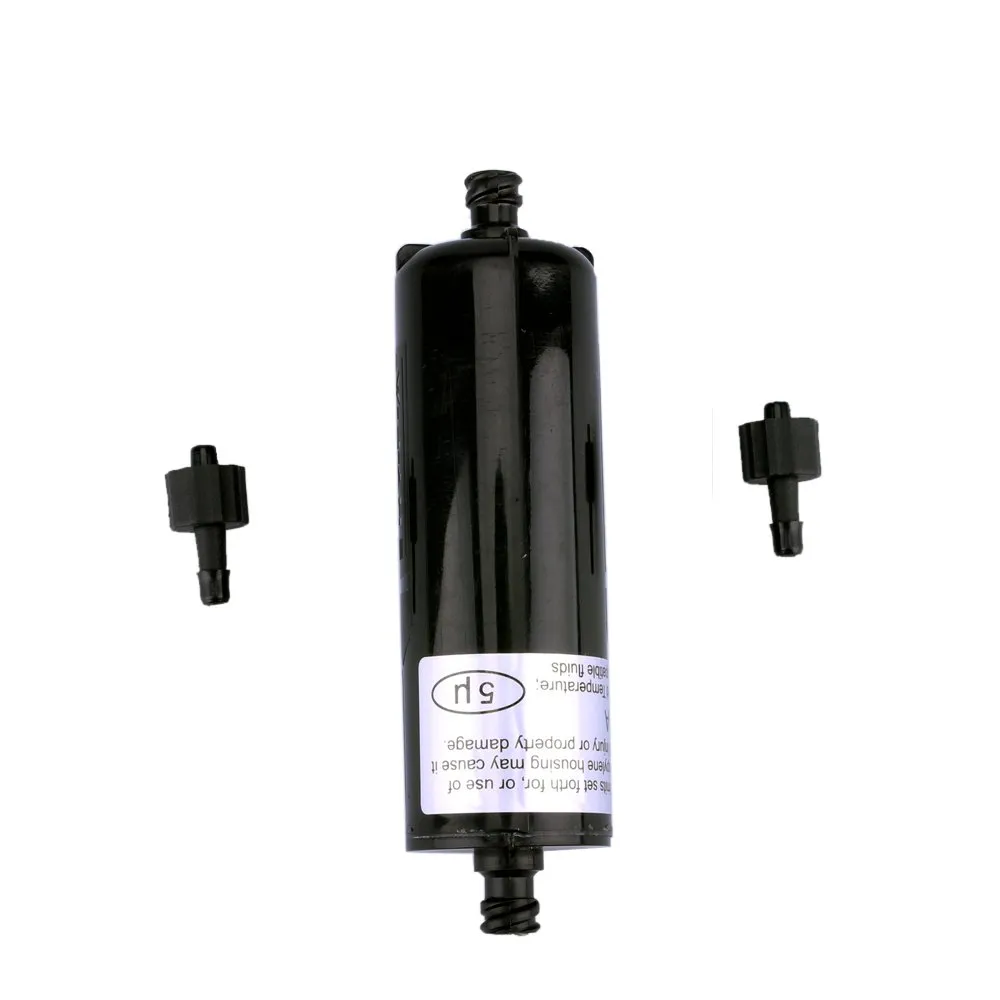

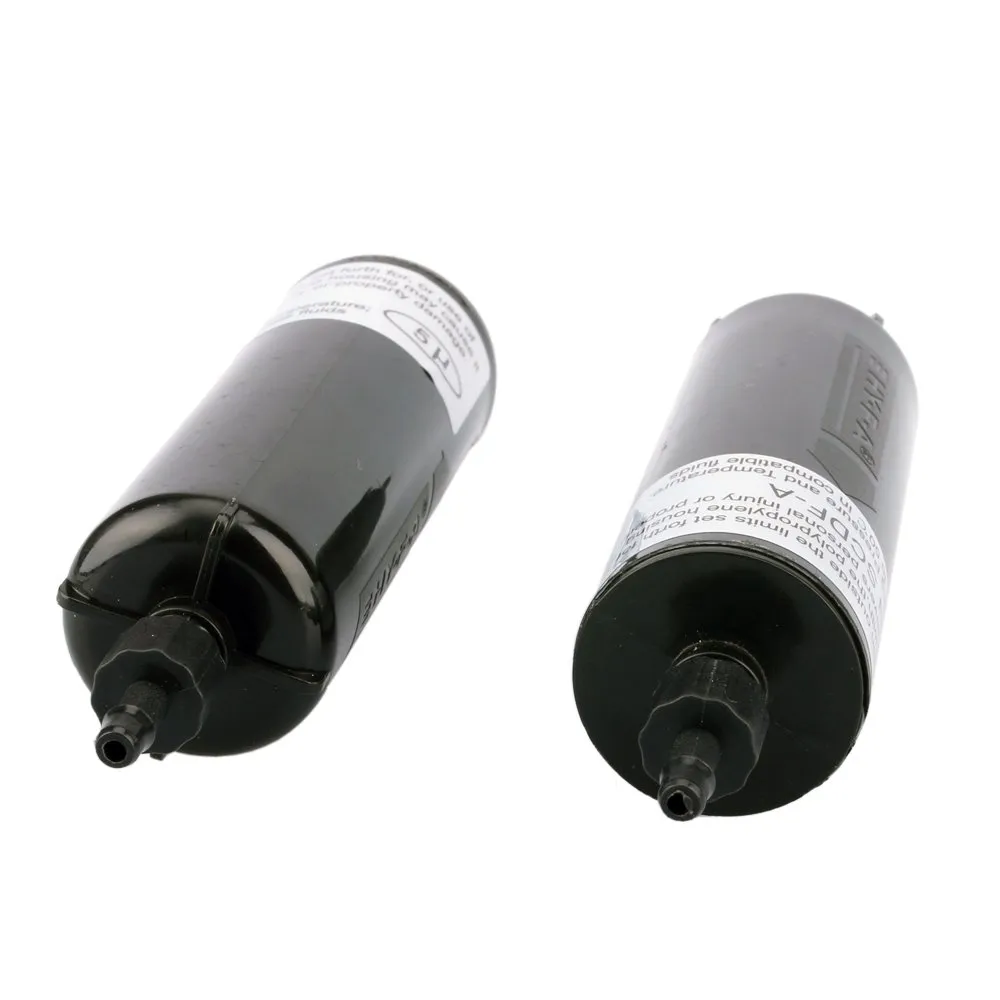

HY-F-A Capsule UV Ink Filter
The HY-F-A Capsule UV Ink Filter is designed to provide high-precision filtration for large-format UV printers, ensuring stable ink flow and prolonged printhead life. Its large filtration area, imported stainless steel filter element, and corrosion-resistant materials make it ideal for industrial printing applications.
Key Features
-
Large Filtration Area: 2600 mm² of actual surface area allows more media to be accommodated, extending the filter’s lifespan.
-
Imported Stainless Steel Filter: Precisely filters tiny particles in the ink to protect the printhead.
-
High-Precision Filtration: Filters impurities down to 5 μm, suitable for different types of UV inks.
-
Corrosion-Resistant Material: Resistant to acid, alkali, and chemical corrosion, ensuring long-term durability.
-
Tight Interface: Threaded design prevents leakage and protects the printhead from ink breakage.
Replacement Cycle: Recommended every three months for optimal performance.
Specifications
| Feature | Specification |
|---|---|
| Name | HY-F-A Ink Filter |
| Filtering Area | 2600 mm² |
| Filter Precision | 5 μm |
| Dimension | 27.2 × 101.6 mm |
| Feature | Long type |
| Suit For | All large-format UV printers |
