Description

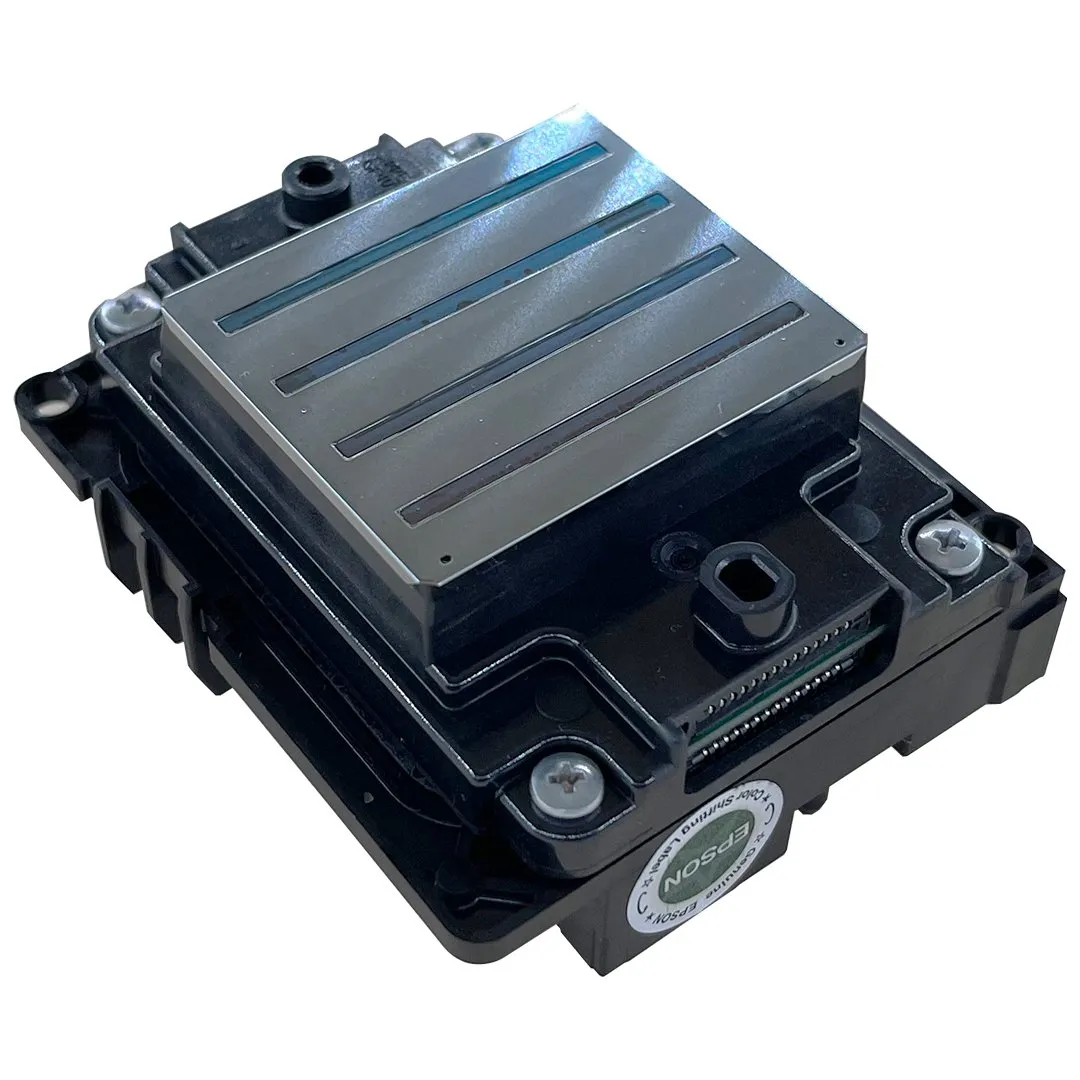

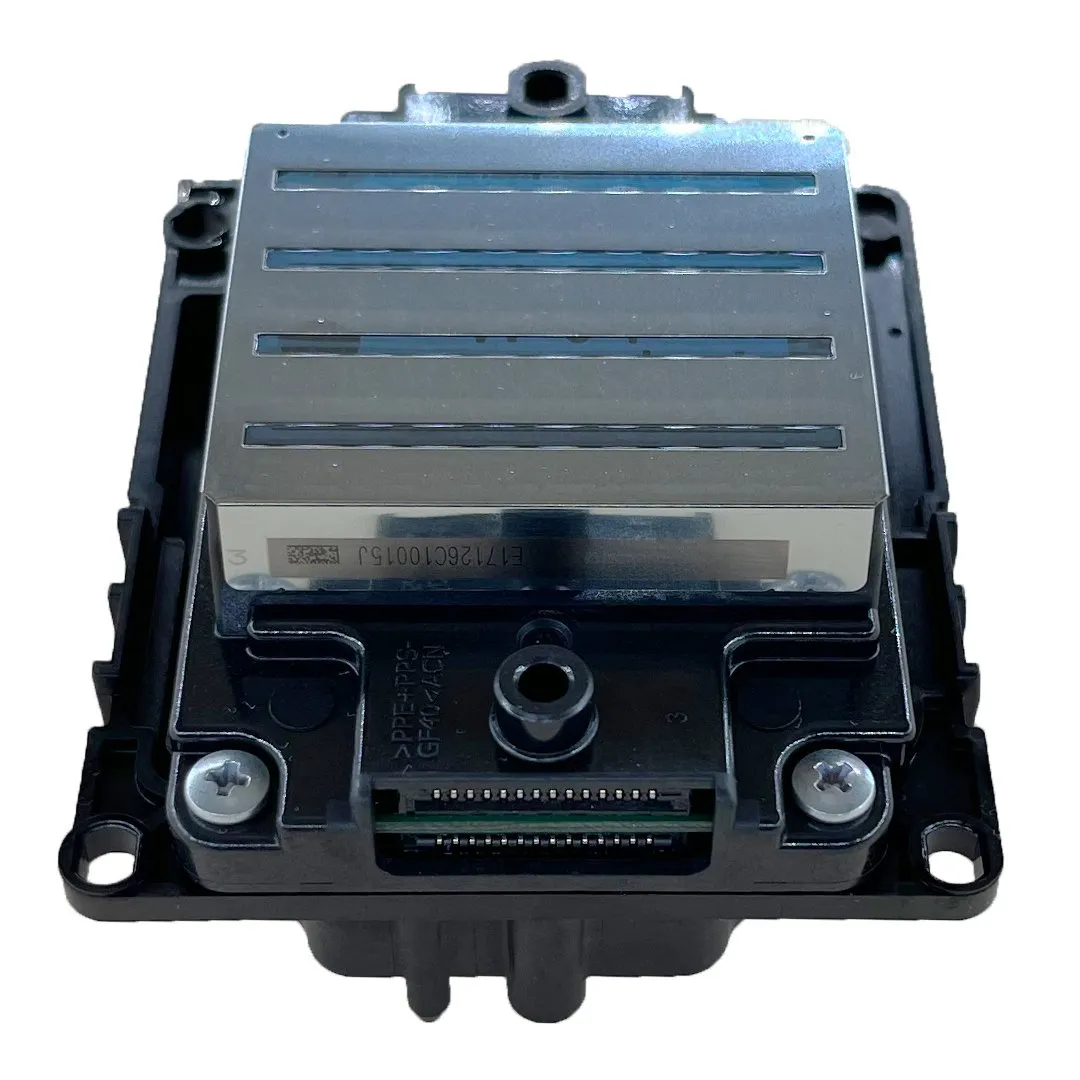

The Epson I3200-A1 HD Printhead is a high-performance, cost-effective solution for water-based inks, offering superior resolution and precision. With a width of 1.33 inches and up to 1200 nozzles per inch, it ensures high-quality printing for industrial and commercial applications.

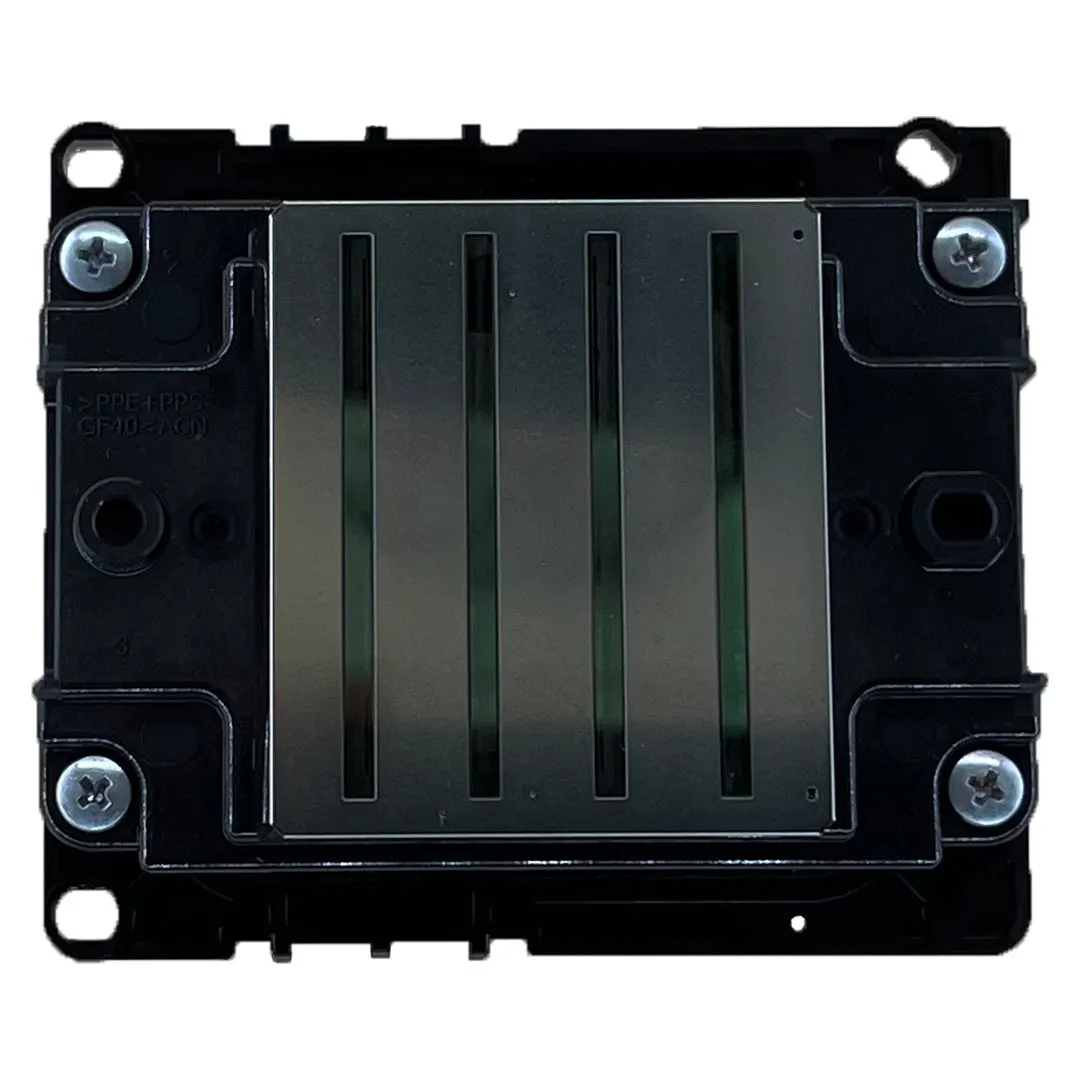

Structurally, the I3200-A1 and I3200-A1 HD printheads share the same design, featuring 8 rows of 400 nozzles. However, they are not interchangeable—each printer requires the specific printhead it was designed for.
-
I3200-A1: Supports 4 colors, with 4 damper inputs; each color uses two nozzle rows.
-

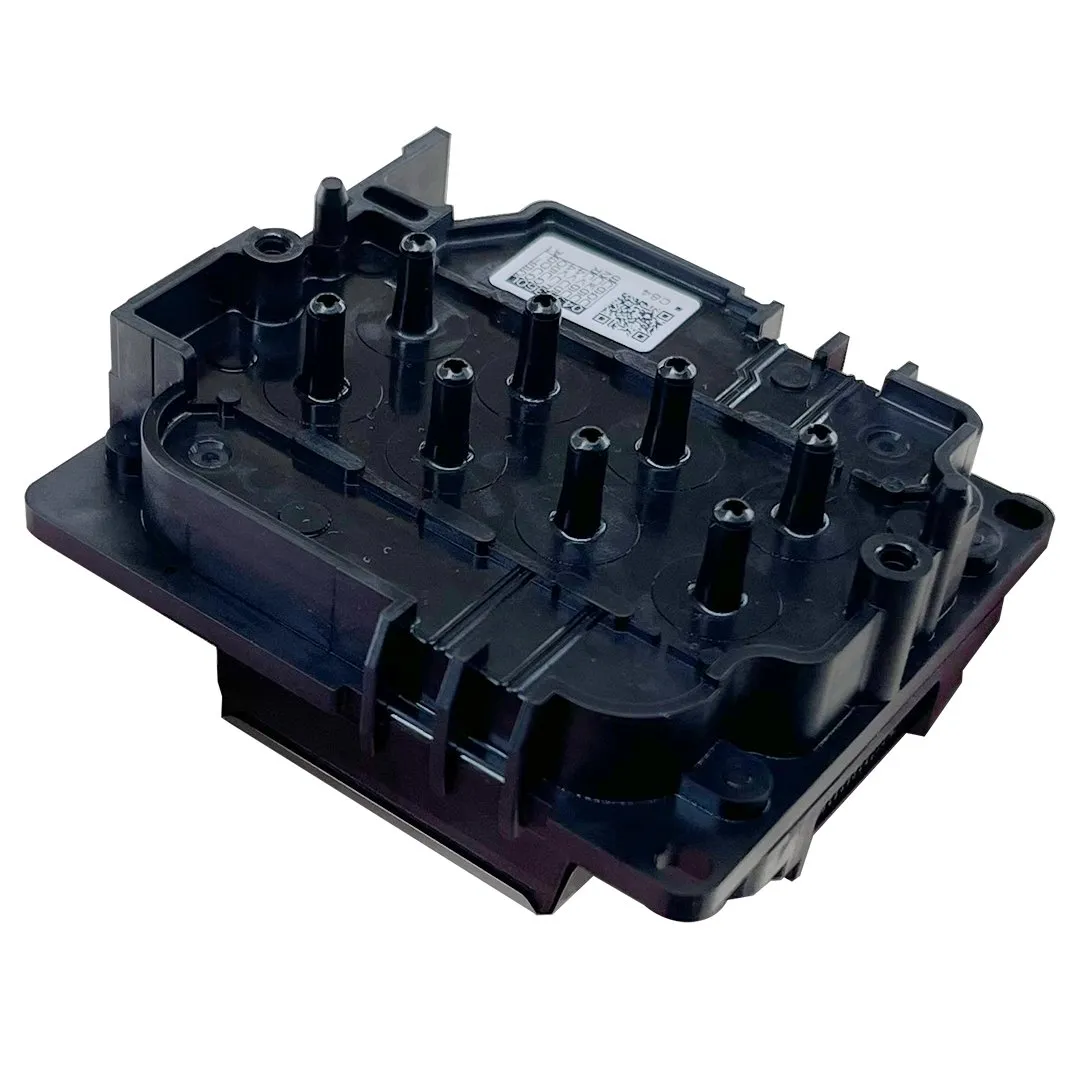

I3200-A1 HD: Supports 8 colors, with 8 damper inputs; each color uses one nozzle row.
This printhead is ideal for applications requiring high-resolution, multi-color water-based printing with consistent droplet ejection and precision output.
Specifications
| Feature | Specification |
|---|---|
| Product Name | I3200(8)-A1 HD |
| Number of Nozzles | 3200 |
| Nozzle Pitch / Nozzle Row | 1/300 inch |
| Nozzle Rows | 8 rows |
| Nozzle Resolution | 300 npi/row, 600 npi/2 rows, 1200 npi/4 rows |
| Max Colors Supported | 8 colors |
| Effective Print Width | 33.8 mm |
| Dimensions (W x D x H) | 69.1 x 59.4 x 36.7 mm |
| Weight | 82 g |
| Ink Type | Water-based (Aqueous) |
| Viscosity Range | 3–4 mPa·s |
Droplet Ejection Performance
| Mode | Droplet Size (pl) | Frequency (kHz) |
|---|---|---|
| Binary | 6 pl | 43.2 |
| 3-Level Grey Scale | 6.3–12.3 pl | 21.6 |
| 4-Level Grey Scale | 3.8–6.1–9.4 pl | 21.6 |
