Description

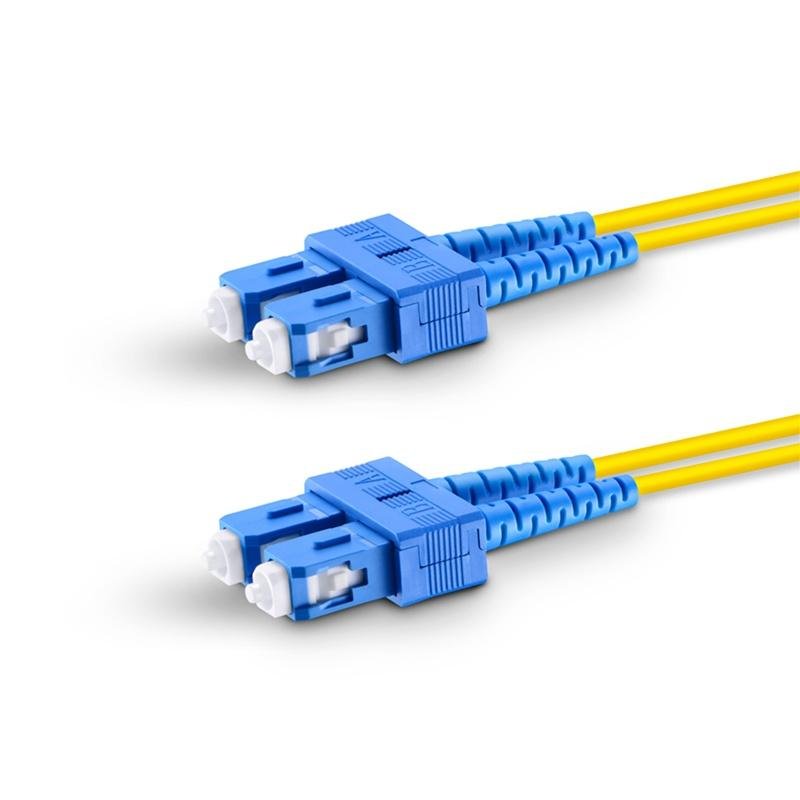

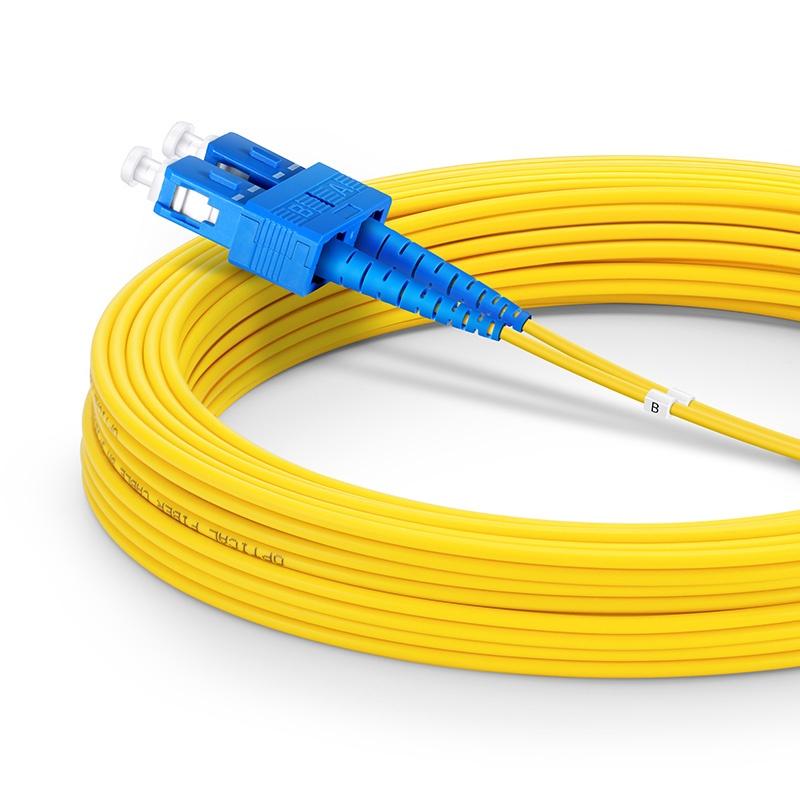

This 15m OS2 9/125μm singlemode SC to SC duplex fiber optic cable offers reliable, low-loss data transmission for enterprise networks, data centers, and telecom systems. The bend-insensitive design reduces signal attenuation when the cable is bent or twisted, making installation and maintenance easier and more efficient. Ideal for high-density cabling and compatible with 1G–400G Ethernet networks.
Key Features:
-
15m (49.2ft) OS2 singlemode duplex fiber cable
-
SC to SC connectors for stable connection
-
Low insertion loss (≤0.3dB) and high return loss (≥50dB)
-
Bend-insensitive fiber for flexible routing and tight spaces
-
Suitable for 1G to 400G Ethernet connections
-
Long-distance transmission: up to 10km @1310nm, 40km @1550nm
-
Durable PVC jacket for protection and long life
Specifications:
| Specification | Details |
|---|---|
| Fiber Type | OS2 9/125μm Singlemode |
| Connectors | Duplex SC Male to SC Male |
| Length | 15m (49.2ft) |
| Fiber Count | Duplex |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Bend Radius | 50mm |
| Cable Diameter | 2.0mm |
| Jacket Material | PVC |
| Operating Temp | -20°C to 70°C |
| Storage Temp | -40°C to 80°C |
| Application | Data Centers, Telecom, Enterprise Networks |
Package Includes:
-
1 × 15m OS2 SC to SC Singlemode Duplex Fiber Optic Cable
